Wireless LAN Amplifier 50 Watt

		WL- Watt Wireless LAN Amplifier

FEATURES:
g 2.4 - 2.485GHz. Operation	g Filter Options: 3, 4, or 5 Pole bandpass Filters
g RF Power Output 50 Watts CDMA	g Land, Mobile, Aircraft & Shipboard Operation
g Input RF Drive Options: 15mW - 500mW	g Automatic RF Sense operation
g Voltage options: AC or DC Operation	g N Connectors
g Integrated Ultra Low Noise Preamplifier	g Infinite VSWR Protection with automatic reset
g Noise Figure <1.5dB Gain 14dB	g Rugged Construction for hostile environments
g Receive Diversity Option	g Stainless Steel Hardware
g Rack or Cabinet Enclosure

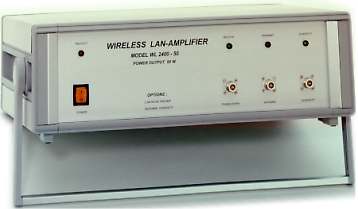

SSB Electronic's WL-2400 50 wireless LAN RF amplifier with integrated Ultra Low Noise receive preamplifier has been designed to interface with the Lucent Technologies IEEE 802.11 wireless LAN cards including their new Turbo wireless cards. In addition, the WL-2400 50 supports the Lucent Technologies implementation of receive diversity. Versions of the WL-2400 50 can be produced to interface with other data transceiver cards.

The WL-2400 50 contains an Ultra Low Noise receive preamplifier with an internal NF of less than 0.5dB. This amplifier can be configured with optional 3, 4 or 5 pole bandpass filters for operation in extremely hostile RF environments.

Contact us for custom frequencies and options.

Options:
RF Input Levels 20....500mW
Receive Diversity
Custom Frequencies
Voltage Options: 12 or 24VDC, 120 - 250AC
Custom configurations
Preamplifier: 3, 4, or 5 pole Bandpass filters

Note: Amplifiers are available for military, export, OEM, and government contractor sales.
Please contact us with your requirements.
