Aircom Plus is the new 50 ohm coaxial cable that everyone is talking about. Due to its outstanding electricaland mechanical specifications and its ultra low loss characteristics AIRCOM PLUS is extremely suited for VHF, UHF & SHF applications.
AIRCOM PLUS outperforms any cable in its price class. In fact, AIRCOM PLUS performs very closely at VHF and UHF frequencies to cables costing two to three times more.

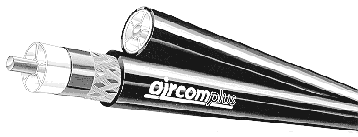

Aircom Plus's mechanical construction incorporates a solid flexible copper conductor, unmovable honeycomb expander, a coated solid copper foil surrounded by copper braid for 100% shielding. The cable is then covered with a tough an elastic UV protected PVC exterior jacket. Unlike other cables that change impedance when sharply bent, AIRCOM PLUS's unique honeycomb expander retains the correct impedance.
Aircom Plus's tough honeycomb expander allows no displacement of the center conductor. It can therefore be used in ducting, telescoping, and rotating aerial systems without degrading the signal quality.
The expander also provides a tight seal around the inner conductor, ensuring it is protected against moisture and corrosion.
A high quality N-plug has been developed for AIRCOM PLUS. Its design features: a 3 micron gold plated interior pin, nickel plated exterior, waterproof construction and operation up to 10 GHz.
| FREQUENCY | AIRCOM PLUS | RG 213 |
|---|---|---|
| 10 MHz. | 0.27 | 0.60 |
| 100 MHz. | 1.00 | 2.19 |
| 145 MHz. | 1.37 | 2.59 |
| 432 MHz. | 2.50 | 5.27 |
| 1000 MHz. | 3.81 | 7.77 |
| 1296 MHz. | 4.63 | 8.38 |
| 2304 MHz. | 6.55 | 12.50 |
| 3000 MHz. | 7.62 | 18.99 |
| 5000 MHz. | 10.39 | |
| 10000 MHz. | 16.76 |
Electrical Specifications Impedance 50 ohms ... Outside Diameter 10.8mm ...Center Conductor Diameter 2.7mm ... Inner Dielectric Dia. 7.2mm ... Velocity Factor 0.85 ... Capacitance per m 84.0pf ... Bending Radius min. 55.0mm ... Weight per 100m 15.0Kg ... Nominal Operating Temperature -40/+80C
AIRCOM is available in: 82ft. (25-m), 164ft. (50-m), 328ft (100-m), and 656ft. (200-m) spools. AIRCOM PLUS meets ISO9002 and NATO AQAP standards.
AIRCELL 7 is a .7mm (.287"OD) low loss extra flexible cable that is excellent for HF operation and is usable well up into the microwave region. Aircell 7 begins with a flexible stranded center conductor which is surrounded by gas injected PE foam for low loss. 100% shielding is acheived through the use of both coated copper foil and copper braid. A tough outer jacket of UV protected PVC completes its construction. A full complement of connectors are available for AIRCELL 7 including: BNC, TYPE-N, and PL259.
Electrical Specifications Impedance 50 ohms ... Outside Diameter 7.30mm ...Center Conductor Diameter 2.7mm ... Inner Dielectric Dia. 5.00mm ... Velocity Factor 0.83 ... Capacitance per m 74.0pf ... Bending Radius min. 25.0mm ... Weight per 100m 7.2Kg ... Nominal Operating Temperature -30/+80C ... Maximum Power: 10 Mhz. - 2960 Watts ... 100 MHz. - 850 Watts ... 1000 MHz. - 190 Watts
Both AIRCOM PLUS and AIRCELL 7 meet ISO9002 and NATO AQAP standards.
| FREQUENCY MHz. | AIRCELL 7 | RG 58 | RG 213 |
|---|---|---|---|
| 10 MHz. | 0.81 | 0.60 | |
| 100 MHz. | 2.01 | 4.90 | 2.10 |
| 145 MHz. | 2.40 | 5.42 | 2.59 |
| 432 MHz. | 4.29 | 10.12 | 4.81 |
| 500 MHz. | 4.72 | 11.00 | 5.09 |
| 1000 MHz. | 6.85 | 16.64 | 7.83 |
| 1296 MHz. | 7.95 | 19.66 | 9.14 |
| 1800 MHz. | 9.72 | 25.00 | 11.28 |
| 2000 MHz. | 10.30 | 26.67 | 12.68 |
| 2304 MHz. | 11.55 | 29.60 | 14.17 |
| 3000 MHz. | 13.35 | 35.97 | 17.83 |
AIRCELL 7 is available in continuous lengths up to 1640 feet.(500 M)
