PERSEUS - SDR

Direct Sampling HF Receiver

The Future is now - don't miss it!



WHEN PERFORMANCE COUNTS

WORLD CLASS SOFTWARE DEFINED RADIO

10 kHz. - 30 MHz.

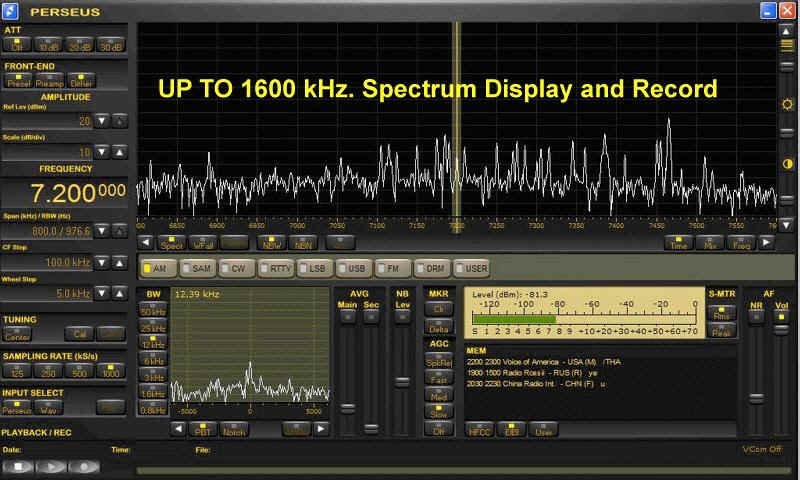

Up to 1600 kHz. Real Time Spectrum Display & Record for Time Shifted Playback

(Selectable from 1.0 kHz up 1600 kHz.)

Sensitivity: -131 dBm (500 Hz. CW BW)

Dynamic Range > 100 dB

3rd order IP: + 31

IF Bandwidth Display

User Selectable Spectrum or Waterfall Display

+ Much More!



Quotes from the 2009 Edition of Passport to World Band Radio -  with measurements made by renowned receiver expert Rob Sherwood of Sherwood Engineering:

"The Microtelecom Perseus is to some extent the best receiver of any sort we have ever tested, price be damned."

"The new Microtelecom Perseus raises the bar for software defined receivers.  In some respects it outperforms any other receiver - regardless of type - tested to date."

Order the 2009 Edition of Passport to World Band Radio at:  www.passband.com





P E R S E U S is a Software Defined Radio covering a frequency range of 10 kHz to 30 MHz.  (Up to 40 MHz. with reduced sensitivity.)  Unlike previous technology, signal demodulation and processing is performed entirely in the digital realm.

PERSEUS features direct digital sampling conversion using a 14 bit 80 MS/s analog-to-digital converter, a high-performance FPGA based digital down-converter and a high speed 480 Mbit/s USB 2.0 PC interface.

PERSEUS sets an unmatched standard in HF Receiver performance and includes features that will satisfy the most demanding user.  Up to 1600 kHz of RF spectrum can be visually monitored in real time.  In addition, its direct digital recording feature allows the user to store up to 1600 kHz. of radio spectrum for later signal analysis, playback, and manipulation.  Imagine being able to go back in time, hours even days, and tune through the recorded spectrum as if it was happening in real time.

PERSEUS shatters the price/performance barrier with its outstanding specifications. With a sensitivity of -131 dBm (BW 500 Hz. CW), you can hear the grass grow!  With a dynamic range of >100 dB (BW 500 Hz CW)  and a 3rd order IP of +31 dB, even the strongest signals are no match for PERSEUS’s ability to allow you to hear the weak ones in a pile up.

Fully scaleable mode tailored bandwidths with steep skirted filters, carefully designed signal demodulation including synchronous detection as well as LAB GRADE spectrum analysis features with a Resolution BW down to 0.4 Hz. makes PERSEUS the clear choice in high performance HF-Receivers.

Impressed so far? There’s even more!

We didn’t mention: Upgradeable software as new features are added, the integration of 9 six pole front-end bandpass filters to further prevent overload of the A/D converter, a selectable 10, 20 or 30 dB 3 step attenuator plus a switchable ultra linear low noise preamplifier. In addition, the Perseus incorporates: a selectable Wide Band or Narrow Band Noise Blanker, Selectable AGC - (Off, Slow, Medium, Fast), Spike Reduction, Variable Noise Reduction feature plus an extremely accurate S-meter selectable between Peak or RMS.

PERSEUS offers a new horizon to SWL’s, HAM Radio operators as well as Government Agencies.Importable frequency lists such as HFCC, EiBi as well as user defined lists are supported.

ADDITIONAL INFO:

                     PERSEUS – The Future is now …. don’t miss it!
