                ZEUS ZS-1 HF SDR Transceiver

A Software Defined Transceiver from SSB Electronic & Alexandr Gromov



A few years ago SSB Electronic introduced the Perseus SDR in the United States. We are now proud to introduce the Zeus ZS-1 fully Digital Defined Transceiver.

The Zeus ZS-1 is in stock and available for immediate delivery.

$1699.95

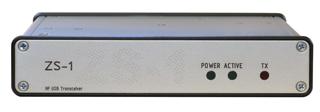

                             Front View

ZS-1


Software defined receivers have been the state of the art for several years now.  The new Zeus ZS-1 offers a Software Defined Transceiver at the Direct Sampling Level.

The Zeus ZS-1 covers all the classic HF bands on transmit including the WARC bands. On receive, the Zeus cover all frequencies from 300 KHz. to 30.0 MHz.

In addition, the Zeus offers an output power of up to 15 W.

High quality band pass filters insure clean Tx signals.

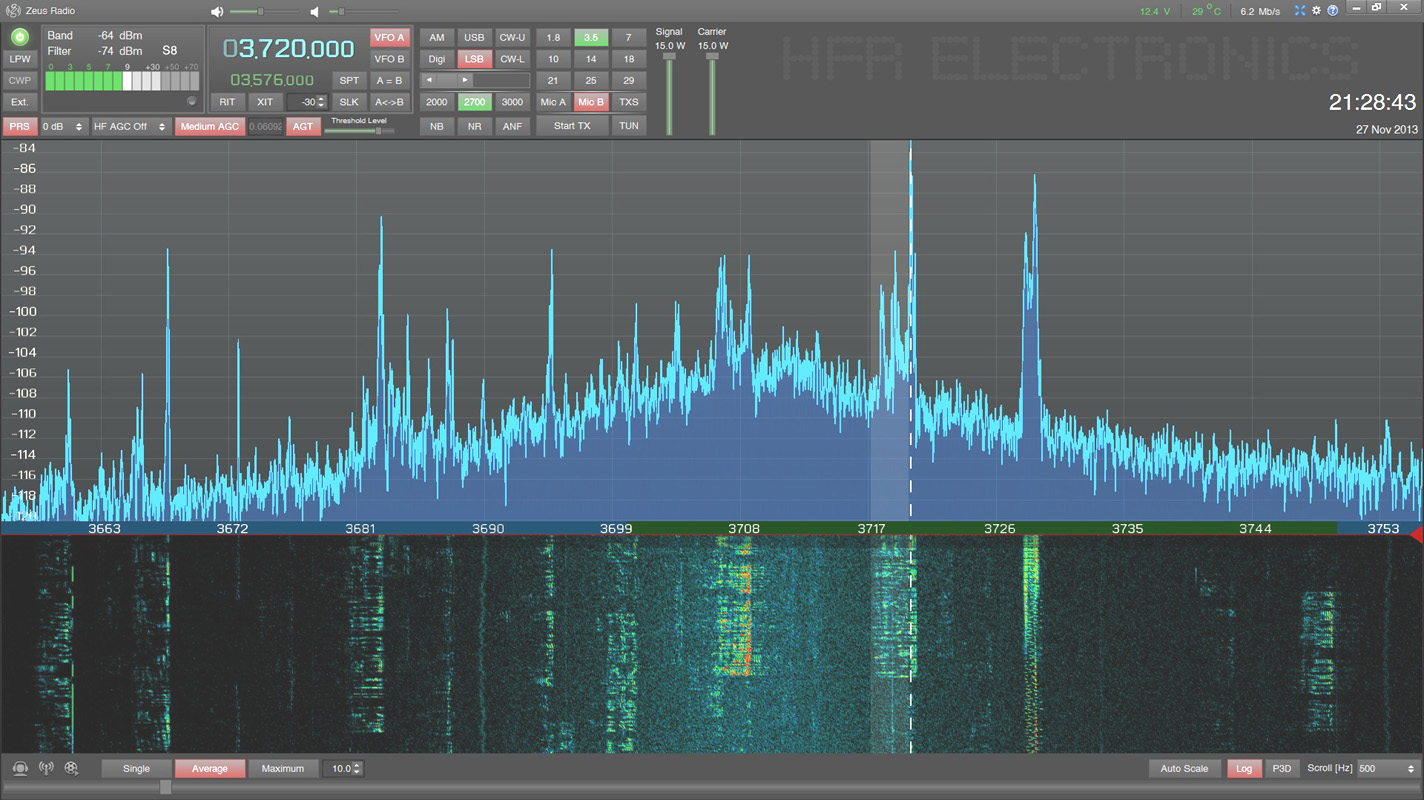

A broad band spectrum display and as well as a simultaneous waterfall display inform the user about activity levels within a given band so no pile ups will go undetected.

The Zeus ZS-1 is connected to the PC via a USB 2.0 connection. In addition, a built in interface additionally allows operation via an IP address.

The rich and full function Zeus operating software written especially for the ZS-1 is also included.

The Zeus ZS-1 features:

  • Selectable AGC

  • Automatic Notch Filter

  • Bar Graph or Traditional S-Meter Display

  • Continously Varabile Filters for CW/SSB/AM

The software offers access to a wide variety of functions including extensive Tx EQ, compression, CW weight ratios, an integrated CW keyer including pre-stored message functions. Not only is type of key/paddle selection supported, CW generation via the keyboard can be selected.

Ham Radio Deluxe, SDR.com and SDR max 111 may be used in conjunction with the ZS-1.

The transmit output power is adjustable from 0 dBm up to 15 W within the amateur radio band. A great feature if using VHF/UHF transverters.

An output power monitor with additional displays is also included.

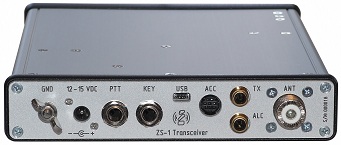

External Connections include:

Key socket for paddle or traditional morse keys

PTT

Socket for manual transmission activated via a foot switch

ALC + more

Specifications:

Frequency range 0.3 30 MHz
Sensitivity (MDS, Preamp on) -141 dBm
Sensitivity (MDS, Preamp off) -135 dBm
Blocking Level (Preamp on) -22 dBm
Blocking Level (Preamp off) -5 dBm
Inband IIP2 (Preamp off) 63 dBm
Inband IIP3 (Preamp off) 28 dBm
Attenuators 4, 10, 14 dB
Bandwidth 10, 20, 40, 100 kHz
Viewing Bandwidth 160, 320, 800, 1600, 4000 kHz
IQ data bit-width 24, 32

Transmitter
Frequency range HF HAM bands 10, 12, 15, 17, 20, 30, 40, 80, 160 m
Output power max. 15 W
Harmonics Level < -50 dB
Non harmonics Level < -78 dB
Bandwidth 10 kHz
IQ data bit-width 16

Common characteristics:
PC Interface (data & control) USB 2.0
Supply voltage 12 15 V
Supply current (receive) 0.5 A
Supply current (transmit) 4 A
Size 240 x 170 x 34 mm
Weight 1.2 kg



Min. requirements:

Windows XP/Vista/7 x32 / x64. USB2.0 Port, Intel Core 2 Duo 1,5 GHz with 2 GB RAM, Video card with OpenGL 1.5 or higher.

For more information
Download PDF


The current Zeus ZS-1 manual is available here (v2.6):

Download PDF

Firmware Update (only needed for certain features of Version 2.5):

Download Firmware Tool
